PTO DRIVELINE SHIELDS/GUARDS
Serving the Agricultural Replacement Parts Business Since 1972
Part Number

AS20090
AS20130
AS20180

NOTE: Includes ALL Standard Bearings

Closed Length

40" *
59" *
79" *

* Guards easily
cut to length

Open Length​

63" *
98" *
134" *

* Guards easily
cut to length

Small to Medium Diameter PTO Shafts

Yoke bearing groove dia 1 5/16" to 2 1/8"
BARE-Co shafts up to and including series 4
BYPY & COMER shafts up to and including series 4 with triangle profile drive tube (see below**)
U.S. 6N - 12N Series
WALTERSCHEID shafts up to and including series W2100

**Add
AS274
SPECIAL BEARING SET
for Latest BYPY Shafts with Square Drive Tube. Series S2, S4, S5.

Yoke Bearing groove diameters
70mm (2.75") + 73mm (2.875")
Part Number

AS30090
AS30130
AS30180

NOTE: Includes ALL Standard Bearings

Closed Length

40" *
59" *
79" *

* Guards easily
cut to length

Open Length

63" *
98" *
134" *

* Guards easily
cut to length

Larger Diamter PTO Shafts

Yoke bearing groove dia 2" to 3 1/8"
BARE-Co shafts series 6 to 2600
BYPY & COMER shafts series 5 to 10 series with triangle profile drive tube (see below**)
U.S. 14N - 35N - 44N - 55N Series
WALTERSCHEID shafts series W2300S to W2600 (see below for W2700, P600, P700)

**Add
AS390 SPECIAL BEARING SET

for Latest BYPY Shafts with Square Drive Tube. Series S6, S7, S8, H8

Yoke Bearing groove diameters
86mm (3.39") + 89mm (3.5")
AS382
SPECIAL BEARING SET

for the VERY LARGE (50mm 1.97" dia Cross Bearing) Walterscheid W2700 series EARLY type shafts

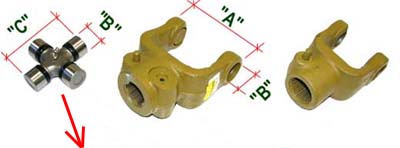

Confirm shaft groove diameter with this picture

AS395
SPECIAL BEARING SET

for the VERY LARGE (50mm 1.97" dia Cross Bearing) Walterscheid P600 & P700 series LATE type shafts

Confirm shaft groove diameter with this picture
Single and Double Joint Assemblies
Big Square Balers
Round Balers
Disc
Mowers
Rotary Cutters &
Flex Wing Mowers
Tedders & Rakes
When clicking on the pictures below you will be either directed to my suppliers Australia Site for breakdown and descriptions or my site for additional information.  Some part numbers will be listed on my store. You will need to contact me for pricing and availability on other items.  Most of the Items are stocked in the Tennessee or California Warehouses and can be drop shipped to you.
Single and Double Joint Assemblies
PTO Shaft Guards
PTO Shaft Guards for
Wide Angle Shafts
PTO Clutch Safety Guards
Metal Tractor
PTO Guards
Safety Guard Parts for Wide Angle
Safety Guard Parts for Standard Guards
